Retsch

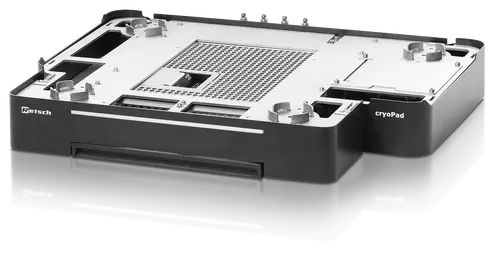

CryoPad
tilbehør til MM500 Control, når du ønsker å bruke flytende nitrogen for å kjøle prøvene.
CryoPad regulerer gjennomstrømningen av LN2 gjennom adapteren og lar deg velge kjøletemperatur mellom -100°C og 0°C ved hjelp av flytende nitrogen.
Varebeskrivelse | Lagerstatus | Logg inn | |
---|---|---|---|
![]() | RET 709500002 CryoPad 100-230 V, 50/60 Hz | Bestillingsvare | Logg inn for å se priser |
Produktspesifikasjoner | Verdi |
---|---|
Applications: | cryogenic grinding with liquid nitrogen |
Interface: | RS-232 (MM 500 control) |
Communication connection: | via included connection cable |
Power supply: | via external power supply |
Electrical supply data (input external power supply): | 100-230V, 50/60 Hz |
External power supply classification: | Medical grade isolation level |
Electrical supply data (input cryoPad): | 24 V, 1 A |
Accessories: | LN2 Autofill 150L, LN2 Autofill 50L |
LED status light: | yes |
W x H x D: | 670 x 110 x 590 mm |
Net weight: | ~ 26 kg |
Standards: | CE |
Connection thread size device input | G 1/4" (inner thread) |
Connection thread size of stainless steel tubing adapter | UNF 3/4" |
Permissible pressure range of LN2 supply: | 1.2 ...1.4 bar |
