Asecos
Avtrekksenhet modell HF.EA.11442
Extraction unit model HF.EA.11442. for free standing cabinets with exhaust air monitoring
ASE 14220
Asecos

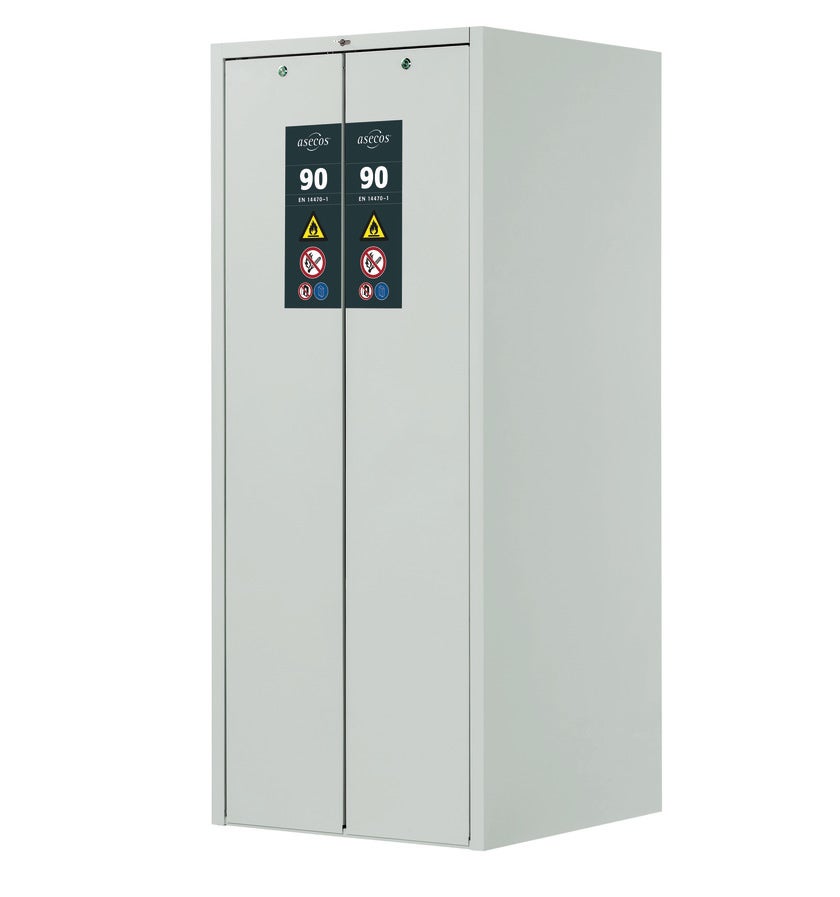

Type 90 sikkerhetsskap V-MOVE-90 modell V90.196.081.VDAC:0012 i lys grå RAL 7035
Type 90 safety storage cabinet V-MOVE-90 model V90.196.081.VDAC:0012 in light grey RAL 7035 with 8x shelf, 2x perforated insert and 2x bottom collecting sump (powder-coated sheet steel)
Safe and approved storage of flammable hazardous substances in working areas
Function / construction
- Robust construction and longevity: robust, high-quality, scratch-resistant outer body with powder-coated surface

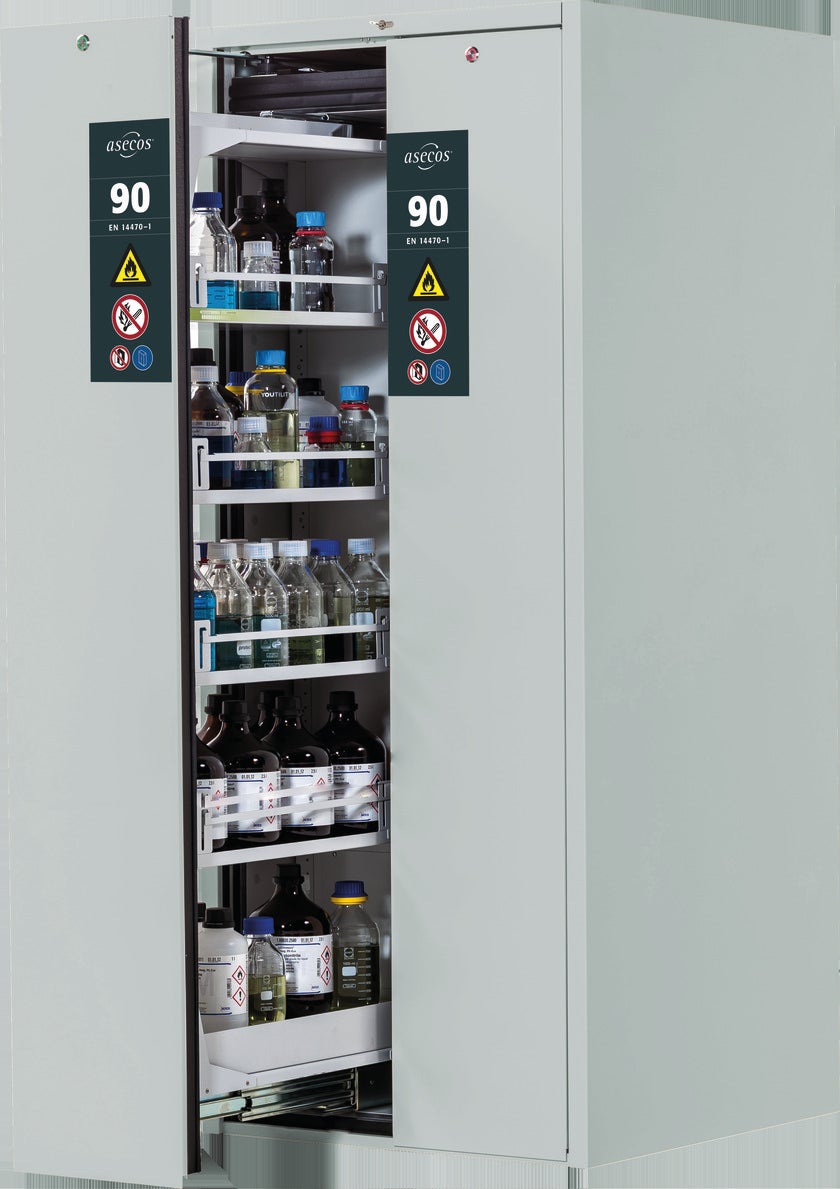

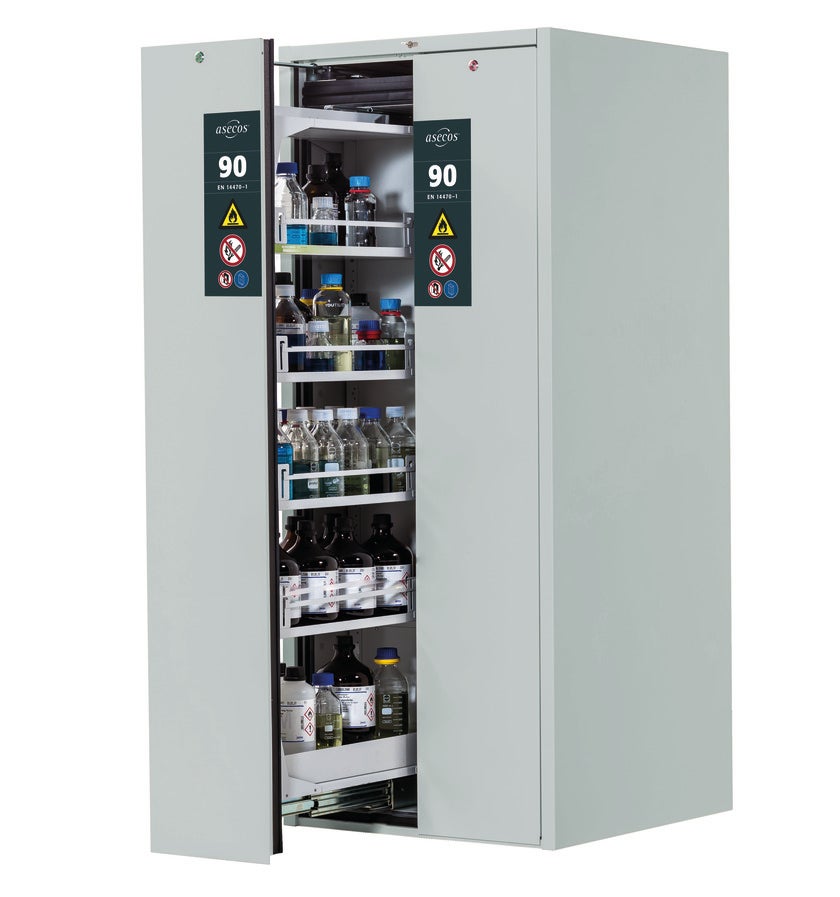

- Electronic opening and closing: the vertical drawers open and close at the push of a button
- Perfect access: the vertical drawers provide an overview and simple access to the stored containers
- Always closed: serial automatic door closing (TSA) after approx. 60 seconds with acoustic and visual signal before drawer closing
- No unauthorised use: vertical drawers lockable with cylinder locking (integration in an existing locking system possible) and locking state indicator (red/green)
- Easy alignment: adjusting aids to compensate for uneven floor
- Ventilation: integrated air ducts ready for connection (DN 75) to a technical exhaust system

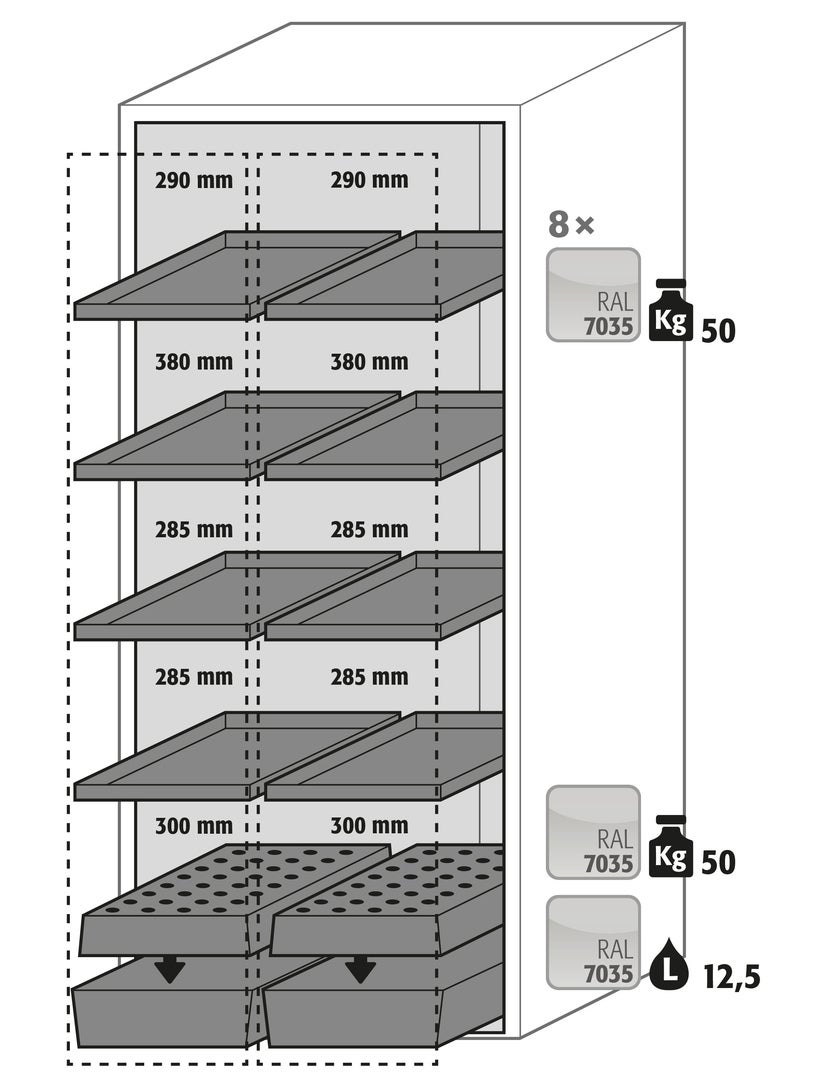

interior equipment with
- 8 x shelf, load capacity: 50 kg, powder-coated sheet steel, RAL 7035 light grey
- 2 x perforated insert, load capacity: 50 kg, powder-coated sheet steel, RAL 7035 light grey
- 2 x bottom collecting sump, capacity: 13 litres, powder-coated sheet steel, RAL 7035 light grey
Certificates
- Fire resistance 90 minutes
- type tested in accordance with EN 14470-1
- DIN EN 16121/16122 conformity
- GS certified
- CE compliant
Tekniske data
| Produktspesifikasjoner | ASE 35035-001-35102 |
|---|---|
| Interior equipment (main part) | shelf, perforated insert and bottom collecting sump |
| Material of interior equipment | sheet steel |
| Number of storage levels | 10 |
| Fire resistance | 90 minutes |
| WEEE labeling | x |
| Transport base | none |
| Integrated adjusting aids (to compensate uneven floor) | x |
| Type of lock | Profile cylinder lock with locking state indicator |
