Asecos

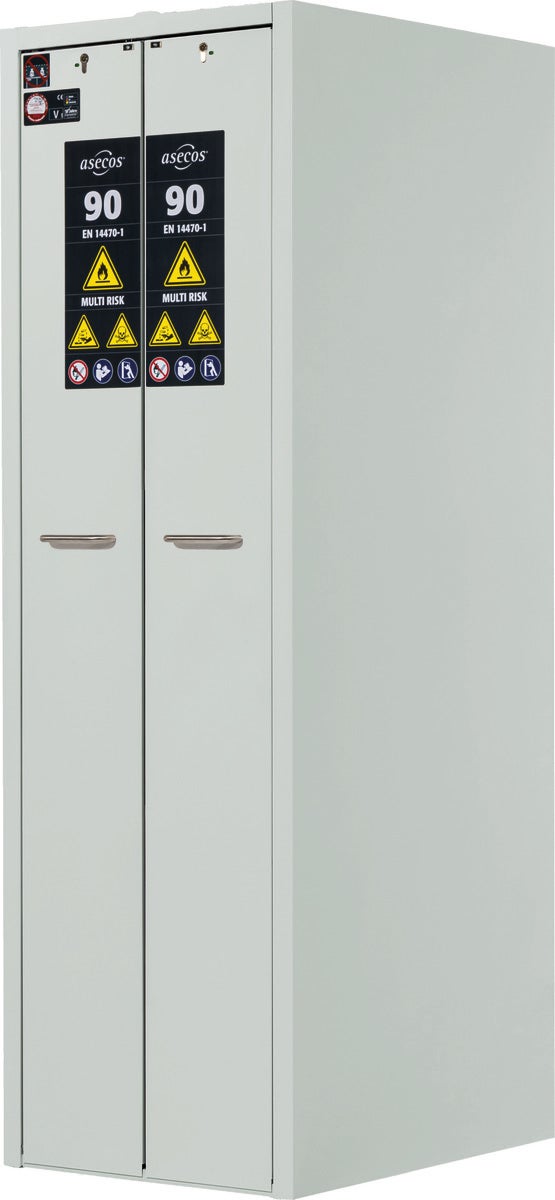

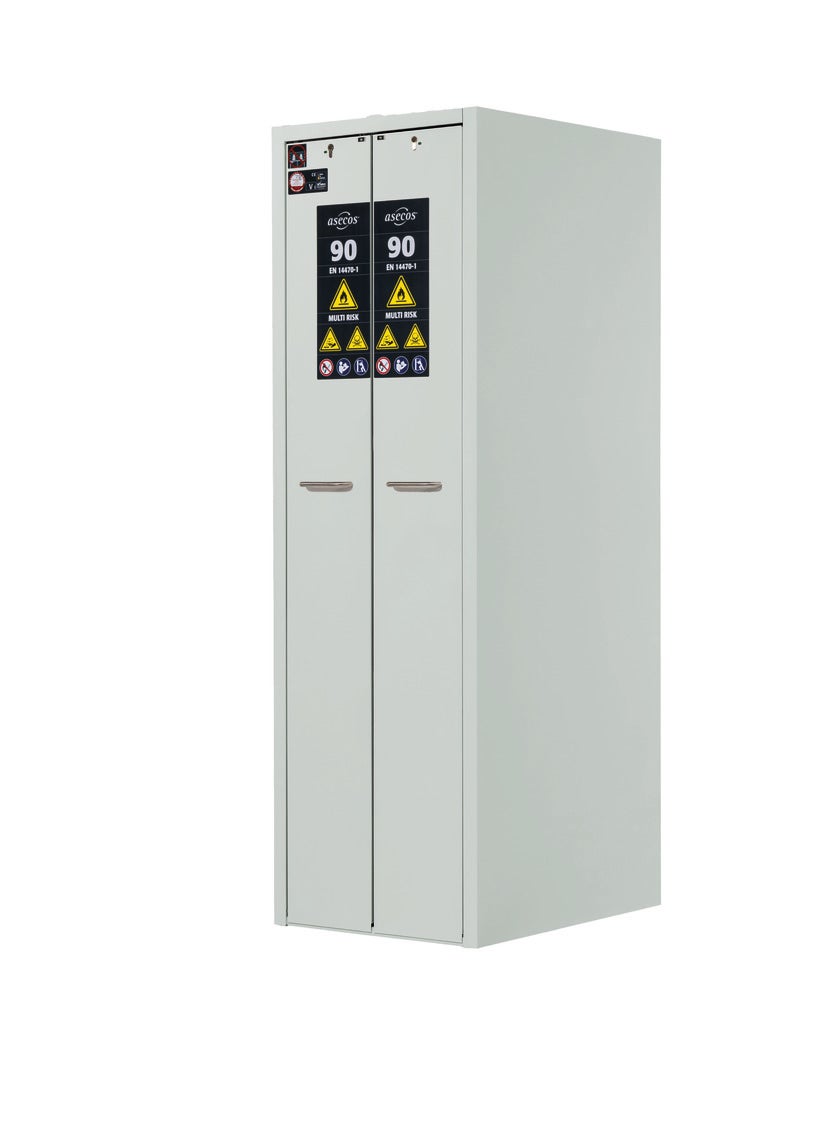

S-Cabinet V-CLASSIC-90 2VD.MV WxDxH(mm) 600x860x1966

Type 90 safety storage cabinet V-CLASSIC-90 model V90.196.060.MV.2VD:0012 in light grey RAL 7035 with 8x tray shelf, 8x perforated insert and 2x bottom collecting sump (metal free)
Spørsmål om produktet? Klikk her!

Safe and approved storage of aggressive and flammable hazardous substances in working areas


Function / construction

  • Robust construction and longevity: robust, high-quality, scratch-resistant outer body with powder-coated surface
  • Two in one: 2 compartments (vertical seperated) allow the storage of flammable liquids and aggressive chemicals in one cabinet

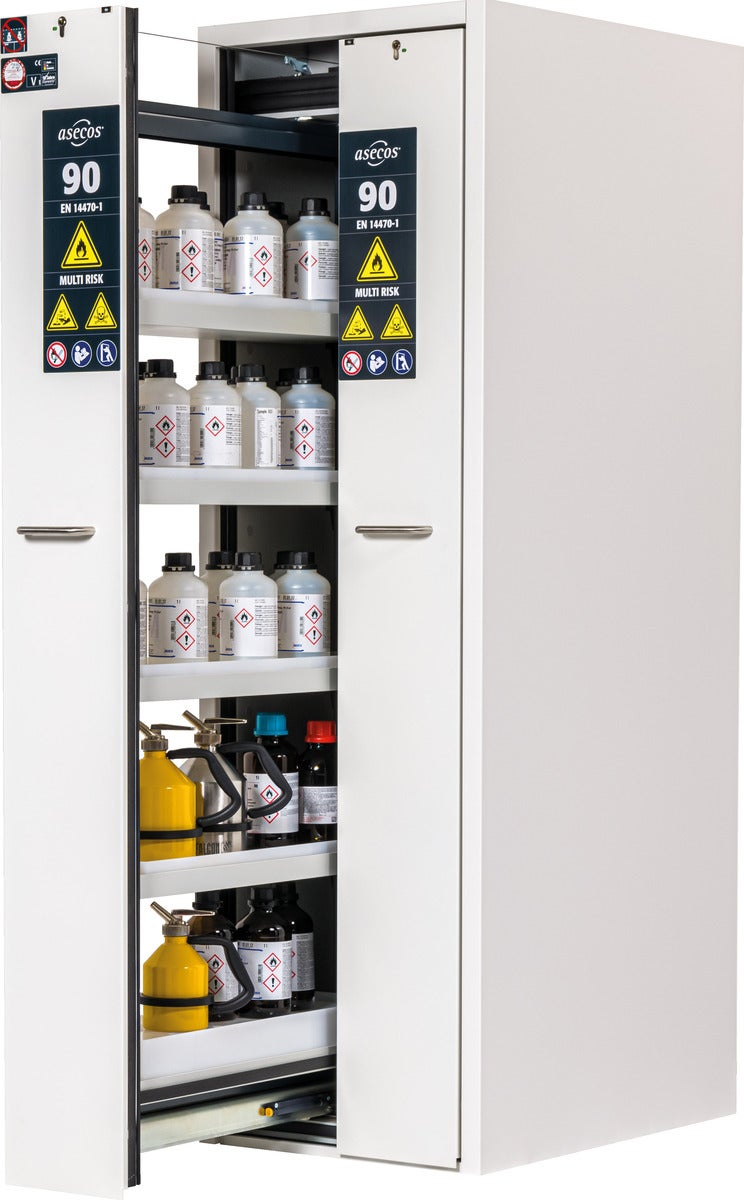

  • Perfect access: the vertical drawers provide an overview and simple access to the stored containers
  • No unauthorised use: vertical drawers lockable with cylinder locking (integration in an existing locking system possible) and locking state indicator (red/green)
  • Easy alignment: adjusting aids to compensate for uneven floor
  • Ventilation: integrated air ducts ready for connection (DN 75) to a technical exhaust system

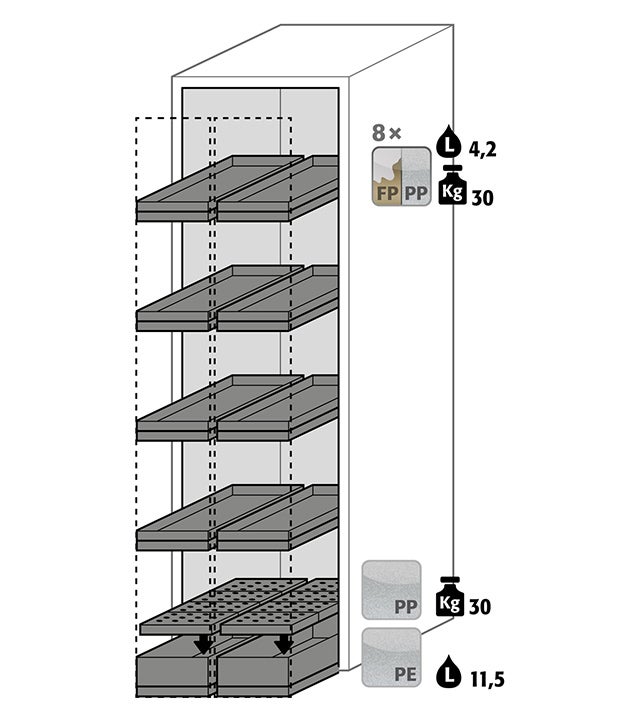

interior equipment with

  • 8 x tray shelf metal free, load capacity: 30 kg, capacity: 4 litres, PP
  • 8 x perforated insert, PP
  • 2 x bottom collecting sump metal free, load capacity: 30 kg, capacity: 12 litres, PE


Certificates

  • Fire resistance 90 minutes
  • type tested in accordance with EN 14470-1
  • DIN EN 16121/16122 conformity
  • GS certified
  • CE compliant

Tekniske data

Produktspesifikasjoner ASE 40285-001-40627
Interior equipment (main part)
tray shelf, perforated insert and bottom collecting sump
Material of interior equipment
PP / PE
Number of storage levels
16
Fire resistance
90 minutes
Transport base
none
Integrated adjusting aids (to compensate uneven floor)
x
Type of lock
Profile cylinder lock with locking state indicator
