Sarad

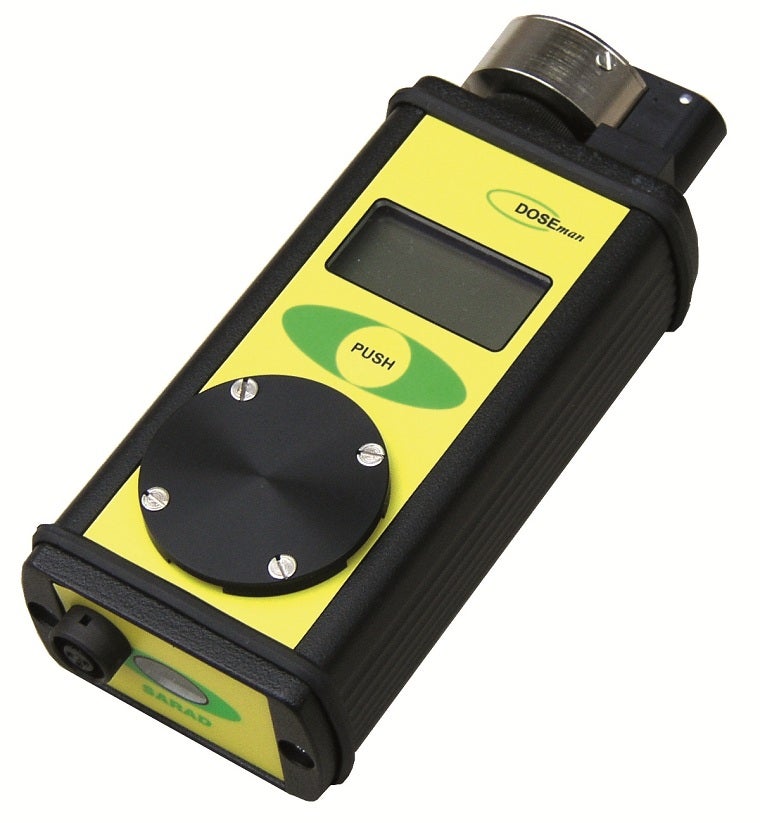

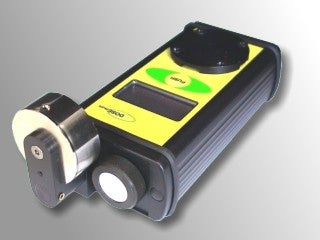

DOSEman PRO - Radon daughter product Exposimeter/Dosimeter

Personal Radon DosimeterDOSEman PRO for direct measurement of Radon and Thoron daughter products in the breathing air -Developed within a project of the German FederalOffice of Radiation Protection -Measurement principals:Continuous deposition of radon and thorondaughter products on a membrane filter, pump, semiconductor detector, alpha-spectroscopy -Permanent filter analysis -Indication: PAEE, PAEC, EEC, equivalent dose,Po-218 concentration -Data communication via IR adapter -Easy one-button operation with dosealert -proven operation in personal protection, in industry, and research for several years -Including abattery charger

The development of theRadon daughter product dosimeterwas initiated by the German Federal Office of Radiation Protection (BfS).The instrument is also qualified for the continuous measurement of Radon progeny concentration.

In combination with a Radon monitor (like RTM 1688-2), an inexpensive system for Equilibrium Factor measurements is offered.

Dimensions and weight were designed to ensure the mobility of the wearer of theRadon daughter product dosimeter. The internalrechargeable battery allows an autonomous operation of more than 40 hours. Due to the optimized sampling head, no other maintenance is required than a monthly filter replacement (continuous operation at normal dust pollution).

The display of theRadon daughter product dosimetercan be toggled between the "Potential Alpha Energy Exposure (PAEE)", theequivalent dose, and the actual concentration levels, PAEC as well as "Equilibrium Equivalent Radon Concentration (EEC)". The dose calculation is based on a user-defined dose conversion coefficient. If the dose value exceeds an adjustable limit, an audible alert will be activated.

TheRadon daughter product dosimeteris tamper-proof – several programmable codes are provided to assign the acquired data to aperson or location later on.

The time distribution of the Radon daughter product concentration is stored in non-volatile memory and can be transferred to a PC by the infrared interface. A special infrared adapter with a USB connection is required.

TheRadon daughter product dosimeterwill be shipped with the actual version of the Radon Vision software.

Please note, that you have to order an IR-adapter with this instrument. You will find them in Accessories! A battery charger is now free of chargeincluded!
