Recirculating air filter system – avoid complex wall breakthroughs and expensive exhaust air ducts
- High flexibility in choosing the installation location
- Active personal protection through safe capture of harmful vapours with retention in the filter system
- Very low noise, only approx. 23 dB (A)
- ATEX compliant: C` II 3/-G Ex ic nA IIB T4 Gc
- Housing made of sheet-steel powder-coated
- With multi-stage filter system, secondary filter, connection cable and mains plug
- Incl. monitoring electronics for exhaust air and filter monitoring and display for status and error indication
- Key control panel for navigation of the functions and status query
- Optical and acoustic alarm including potential-free alarm contact
- Successfully tested by the certified testing institute

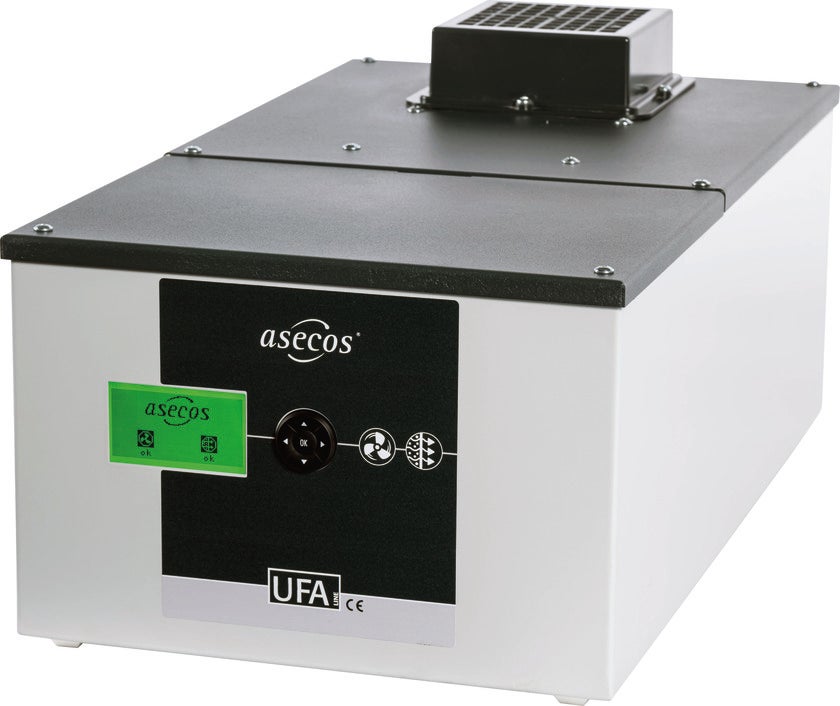

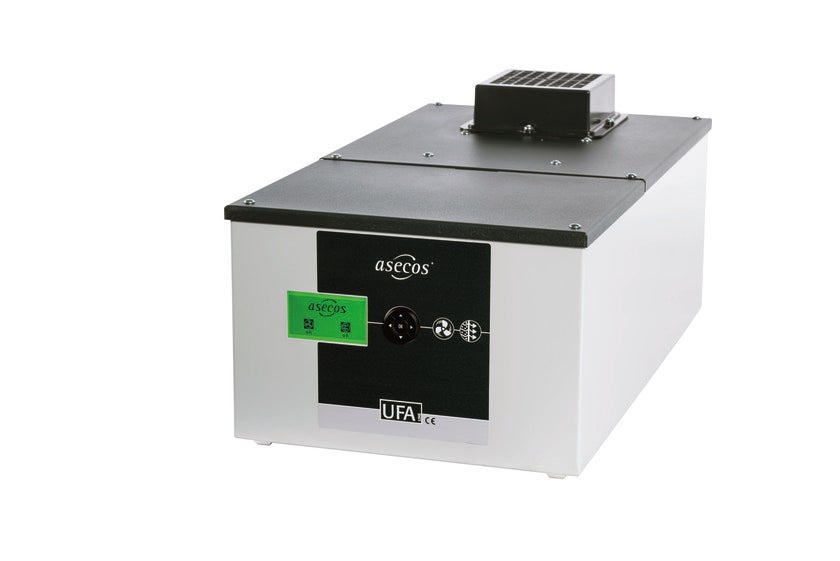

The plug-in recirculating air filter system, type UFA.20.30 is capable of retaining solvent vapours (hydrocarbons) permanently up to a filter saturation of more than 99.999%, under normal operating conditions as well as for a simulated accident in the safety storage cabinet.
Characteristics- W x D x H (mm): 308 x 555 x 256
Please note the country-specific terms of use that are binding for you. In case of doubt, possible uses must be agreed with the competent authority.
